EPSON

Poster Printing (For Windows Only)

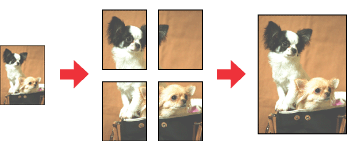

Poster printing allows you to print poster-size images by enlarging one page to cover several sheets of paper.
Note:
This feature is not available with Mac OS X.

Printer settings

Follow the steps below to print odd- and even-numbered pages onto opposite sides of the sheet.
Open the file you want to print.
Access the printer settings.

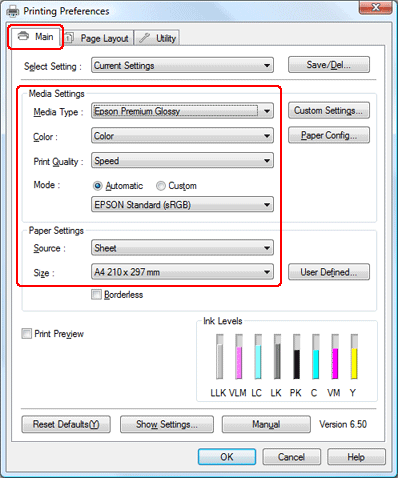

Click the Main tab, select the appropriate Media Type setting, and then select your preferred items for Color, Print Quality, and Mode settings.
Note:
Availability of setting items may vary depending on the setting you select.
Select Sheet or Manual - Roll as the Source setting.
Select the appropriate Size setting.

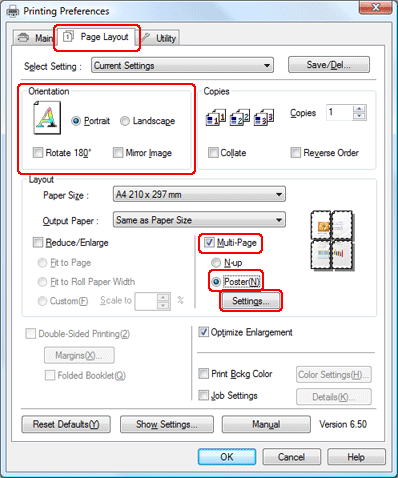

Click the Page Layout tab, select Portrait (tall) or Landscape (wide) to change the orientation of your printout, and then select Multi-page, then select Poster.

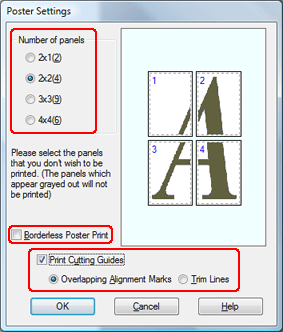

Click Settings to open the Poster Settings window. In the Poster Settings window, select the number of printed pages you want the poster to cover.
Select Borderless Poster Print if you want to make posters without cutting the margins and overlapping the panels.
If you do not select Borderless Poster Print, the following settings are available.
Print Cutting Guides
Prints guide lines for cutting.
Overlapping Alignment Marks
Slightly overlaps the panels and prints alignment markers so that the panels can be aligned more precisely.
Trim Lines
Prints border lines on the panels to guide you when trimming the pages.
Click OK to close the Poster settings window.
After completing the steps above, print one test copy and examine the results before printing an entire job. Then follow the instructions.
See How to make a poster from your printouts

How to make a poster from your printouts

Here is an example of how to make a poster with 2x2 selected under Poster Printing and Overlapping Alignment Marks selected as the Print Cutting Guides.

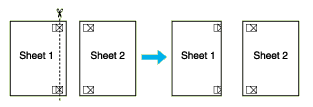

Cut off the margin of Sheet 1 along a vertical line through the center of the top and bottom cross marks:
Place the edge of Sheet 1 on top of Sheet 2 and align the cross marks, then temporarily tape the two sheets together from the back:
Cut the taped sheets in two along a vertical line through the alignment markers (this time, a line to the left of the cross marks):
Align the edges of the paper using the alignment markers and tape them together from the back:
Repeat the instructions from step 1 to step 4 to tape Sheets 3 and 4 together.
Repeat the instructions from step 1 to step 4 to tape the top and bottom edges of the paper:
Cut off the remaining margins.
