Technical Specifications

Paper

Note:
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot attest to the quality of any non-Epson brand or type of paper. Always test samples of paper stock before purchasing large quantities or printing large jobs.
Poor quality paper may reduce print quality and cause paper jams or other problems. If you encounter problems, switch to a higher grade of paper.
Use paper under normal conditions:
Temperature 15 to 25 ˚C (59 to 77 ˚F)
Humidity 40 to 60% RH
Single sheets:
Size
A4 210 × 297 mm
10 × 15 cm (4 × 6 in.)
13 × 18 cm (5 × 7 in.)
A6 105 × 148 mm
A5 148 × 210 mm
A3 297 × 420 mm
A3+ 329 × 483 mm
B4 257 × 364 mm
B5 182 × 257 mm
9 × 13 cm (3.5 × 5 in.)
13 × 20 cm (5 × 8 in.)
20 × 25 cm (8 × 10 in.)
30 × 30 cm (12 × 12 in.)
254 × 305 mm (10 × 12 in.)
279 × 356 mm (11 × 14 in.)
16:9 wide size (102 × 181 mm)
100 × 148 mm
Letter 8 1/2 × 11 in.
Legal 8 1/2 × 14 in.
Half Letter (5 1/2 × 8 1/2 in.)
US B (11 × 17 in.)
US C (17 × 22 in.)
Paper types
Plain bond paper or special paper distributed by Epson
Thickness
(for plain bond paper)
0.08 to 0.11 mm (0.003 to 0.004 in.)
Weight
(for plain bond paper)
64 g/m² (17 lb) to 90 g/m² (24 lb)

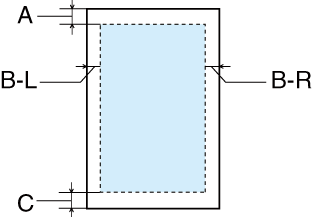

Printable area

Highlighted portions show printable area.
Single sheets and index cards:
Normal
Borderless

Minimum margin
A
3.0 mm (0.12 in.)
B-L, B-R
3.0 mm (0.12 in.)
C
3.0 mm (0.12 in.)
Note:
Depending on the type of paper, print quality may decline in the top and bottom areas of the printout, or the area may be smeared.
Roll Paper:
Standard margins
Pressing the  roll paper button after printing prints a cutting guideline.
If you press the  roll paper button again and send a print job, the margin between printouts is about 65 mm.
If you send a print job that has multiple pages, or send print jobs continuously, there will be no margin between the printouts.
Borderless
Pressing the  roll paper button after printing prints a cutting guideline.
If you press the  roll paper button again and send a print job, the margin between printouts is about 65 mm.
If you send a print job that has multiple pages, or send print jobs continuously, there will be no margin between the printouts.
CD/DVD:
12-cm CD/DVD
8-cm CD/DVD
Caution:
Make sure to set the inner diameter and the outer diameter within the areas shown above, although EPSON Print CD allows you to set the inner diameter down to 18 mm, and the outer diameter up to 120 mm. Printing on the section outside the printable area may damage your CD/DVD drive.
Note:
If you are printing in the following areas of the disc, the disc or the CD/DVD tray may get stained with ink.
Inner hub area
21 to 42 mm

Ink cartridges

Color
Light Light Black, Vivid Light Magenta, Light Cyan, Light Black, Matte Black, Photo Black, Cyan, Vivid Magenta, Yellow
Cartridge life
Use within 6 months of opening the package.
Temperature
Storage:
-20 to 40 ˚C (-4 to 104 ˚F)
1 month at 40 ˚C (104 ˚F)
Freezing:*
-12 ˚C (10.4 ˚F)
* Ink thaws and is usable after approximately 3 hours at 25 ˚C (77 ˚F).
Caution:
Epson recommends the use of genuine Epson ink cartridges. Other products not manufactured by Epson may cause damage that is not covered by Epson’s warranties, and under certain circumstances, may cause erratic printer behavior.
Use the ink cartridge before the date printed on its package.
Do not refill the ink cartridge. Other products not manufactured by Epson may cause damage that is not covered by Epson's warranties, and under certain circumstances, may cause erratic printer behavior.
Note:
The ink cartridges packaged with your printer are partly used during initial setup. In order to produce high quality printouts, the print head in your printer will be fully charged with ink. This one-off process consumes a quantity of ink and therefore these cartridges print fewer pages compared to subsequent ink cartridges.
Quoted yields may vary depending on the images that you are printing, the paper type that you are using, the frequency of your prints and environmental conditions such as temperature.
To ensure you receive premium print quality and to help protect your print head, a variable ink safety reserve remains in the cartridge when your printer indicates to replace the cartridge. The yields quoted for you do not include this reserve.

Mechanical

Paper path
Sheet feeder, top entry
Sheet feeder capacity
About 120 sheets at 90 g/m² (24 lb) paper
Dimensions
Storage
Width: 616 mm (24.3 inches)
Depth: 322 mm (12.7 inches)
Height: 214 mm (8.4 inches)
Printing
Width: 616 mm (24.3 inches)
Depth: 797 mm (31.4 inches)
Height: 415 mm (16.3 inches)
Weight
Approx. 12.2 kg (26.9 lb) without accessories

Electrical


100-120 V Model
220-240 V Model
Input voltage range
AC 90 to 132 V
AC 198 to 264 V
Rated frequency range
50 to 60 Hz
Input frequency range
49.5 to 60.5 Hz
Rated current
0.5 A
0.3 A
Power consumption
Printing
Approx. 20 W (ISO/IEC10561 Letter Pattern)
Approx. 21 W (ISO/IEC10561 Letter Pattern)
Ready mode
Approx. 8.5 W
Approx. 8.5 W
Sleep mode
Approx. 4.0 W
Approx. 4.0 W
Power off
Approx. 0.2 W
Approx. 0.4 W
Note:
Check the label on the back of the printer for its voltage.

Environmental

Temperature
Operation:
10 to 35 ˚C (50 to 95 ˚F)
Storage:
-20 to 40 ˚C (-4 to 104 ˚F)
1 month at 40 ˚C (104 ˚F)
Humidity
Operation:*
20 to 80% RH
Storage:* 5 to 85% RH
* Without condensation

Standards and approvals

U.S. model:
Safety
UL60950-1
CAN/CSA-C22.2 No.60950-1
EMC
FCC Part 15 Subpart B Class B
CAN/CSA-CEI/IEC CISPR 22 Class B
European model:
Low voltage directive 2006/95/EC
EN60950-1
EMC directive 2004/108/EC
EN55022 Class B
EN61000-3-2
EN61000-3-3
EN55024
Australian model:
EMC
AS/NZS CISPR22 Class B

Interface

USB 2.0 Hi-Speed (Device Class for computers)
USB 2.0 Hi-Speed (for PictBridge or USB DIRECT-PRINT compliant devices)
